1. 启动流程

首先看@RpcScan注解

@Target({ElementType.TYPE, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Import(CustomScannerRegistrar.class)
@Documented
public @interface RpcScan {

    String[] basePackage();

}

使用时将其加在服务端启动类上，并指定扫描路径

@SpringBootApplication
@RpcScan(basePackage = {"github.javaguide"})
public class ServerApplication {
    public static void main(String[] args) {
        SpringApplication.run(ServerApplication.class, args);
    }
}

接下来聚焦于@Import(CustomScannerRegistrar.class),直接看完整代码

@Slf4j
public class CustomScannerRegistrar implements ImportBeanDefinitionRegistrar, ResourceLoaderAware {
    private static final String SPRING_BEAN_BASE_PACKAGE = "github.javaguide";
    private static final String BASE_PACKAGE_ATTRIBUTE_NAME = "basePackage";
    private ResourceLoader resourceLoader;

    @Override
    public void setResourceLoader(ResourceLoader resourceLoader) {
        this.resourceLoader = resourceLoader;

    }

    @Override
    public void registerBeanDefinitions(AnnotationMetadata annotationMetadata, BeanDefinitionRegistry beanDefinitionRegistry) {
        //get the attributes and values of RpcScan annotation
        AnnotationAttributes rpcScanAnnotationAttributes = AnnotationAttributes.fromMap(annotationMetadata.getAnnotationAttributes(RpcScan.class.getName()));
        String[] rpcScanBasePackages = new String[0];
        if (rpcScanAnnotationAttributes != null) {
            // get the value of the basePackage property
            rpcScanBasePackages = rpcScanAnnotationAttributes.getStringArray(BASE_PACKAGE_ATTRIBUTE_NAME);
        }
        if (rpcScanBasePackages.length == 0) {
            //如果没有指定包路径，默认扫描当前类所在的包
            rpcScanBasePackages = new String[]{((StandardAnnotationMetadata) annotationMetadata).getIntrospectedClass().getPackage().getName()};
        }
        // Scan the RpcService annotation
        CustomScanner rpcServiceScanner = new CustomScanner(beanDefinitionRegistry, RpcService.class);
        // Scan the Component annotation
        CustomScanner springBeanScanner = new CustomScanner(beanDefinitionRegistry, Component.class);
        if (resourceLoader != null) {
            rpcServiceScanner.setResourceLoader(resourceLoader);
            springBeanScanner.setResourceLoader(resourceLoader);
        }
        int springBeanAmount = springBeanScanner.scan(SPRING_BEAN_BASE_PACKAGE);
        log.info("springBeanScanner扫描的数量 [{}]", springBeanAmount);
        int rpcServiceCount = rpcServiceScanner.scan(rpcScanBasePackages);
        log.info("rpcServiceScanner扫描的数量 [{}]", rpcServiceCount);

    }

}

看registerBeanDefinitions方法，形参AnnotationMetadata封装了@RpcScan所在类的所有注解信息

第一行

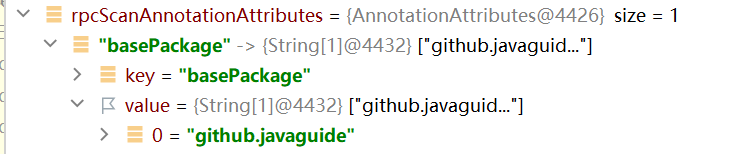

AnnotationAttributes rpcScanAnnotationAttributes = AnnotationAttributes.fromMap(annotationMetadata.getAnnotationAttributes(RpcScan.class.getName()));

fromMap里面得到的是个Map类型，key为注解属性名，value为其相应的值，最终将其封装为AnnotationAttributes

这里的value是个String数组，所以接下来提取这个字符串数组，获得需要扫描的包的路径集，如果没有指定路径，就扫描启动类所在的包

String[] rpcScanBasePackages = new String[0];
if (rpcScanAnnotationAttributes != null) {
    // get the value of the basePackage property
    rpcScanBasePackages = rpcScanAnnotationAttributes.getStringArray(BASE_PACKAGE_ATTRIBUTE_NAME);
}
if (rpcScanBasePackages.length == 0) {
    //如果没有指定包路径，默认扫描当前类所在的包
    rpcScanBasePackages = new String[]{((StandardAnnotationMetadata) annotationMetadata).getIntrospectedClass().getPackage().getName()};
}

接下来实例化了两个扫描器

// Scan the RpcService annotation
CustomScanner rpcServiceScanner = new CustomScanner(beanDefinitionRegistry, RpcService.class);
// Scan the Component annotation
CustomScanner springBeanScanner = new CustomScanner(beanDefinitionRegistry, Component.class);
if (resourceLoader != null) {
    rpcServiceScanner.setResourceLoader(resourceLoader);
    springBeanScanner.setResourceLoader(resourceLoader);
}
int springBeanAmount = springBeanScanner.scan(SPRING_BEAN_BASE_PACKAGE);
log.info("springBeanScanner扫描的数量 [{}]", springBeanAmount);
int rpcServiceCount = rpcServiceScanner.scan(rpcScanBasePackages);
if (rpcServiceCount != 0) {
    NettyRpcServer.isNeedStart = true;
}
log.info("rpcServiceScanner扫描的数量 [{}]", rpcServiceCount);

public class CustomScanner extends ClassPathBeanDefinitionScanner {

    public CustomScanner(BeanDefinitionRegistry registry, Class<? extends Annotation> annoType) {
        super(registry);
        super.addIncludeFilter(new AnnotationTypeFilter(annoType));
    }

    @Override
    public int scan(String... basePackages) {
        return super.scan(basePackages);
    }
}

这里会将扫描到的满足条件的类注册到Spring中，scan返回了注册的类的数量

从实际代码来看就是扫描@Component和@RpcService所在的类并加入到IOC容器

@Component主要是在RPC内部实现类上，后者是在服务提供者上。

当Spring容器初始化完成后，会启动Netty服务。

@Component
public class StartupApplicationListener {
    @Autowired
    private NettyRpcServer nettyRpcServer;
    @EventListener(ContextRefreshedEvent.class)
    public void rpcStart() {
        nettyRpcServer.start();
    }
}

2. SPI机制

首先通过ExtensionLoader的getExtensionLoader方法获得加载器

如下

LoadBalance loadBalance = ExtensionLoader
        .getExtensionLoader(LoadBalance.class)
        .getExtension(StringUtil.isBlank(rpcReferenceConfig.getLoadBalance()) ? LoadBalanceEnum.LOADBALANCE.getName() : rpcReferenceConfig.getLoadBalance());

看看getExtensionLoader方法

private static final Map<Class<?>, ExtensionLoader<?>> EXTENSION_LOADERS = new ConcurrentHashMap<>();

public static <S> ExtensionLoader<S> getExtensionLoader(Class<S> type) {
    if (type == null) {
        throw new IllegalArgumentException("Extension type should not be null.");
    }
    if (!type.isInterface()) {
        throw new IllegalArgumentException("Extension type must be an interface.");
    }
    if (type.getAnnotation(SPI.class) == null) {
        throw new IllegalArgumentException("Extension type must be annotated by @SPI");
    }
    // firstly get from cache, if not hit, create one
    ExtensionLoader<S> extensionLoader = (ExtensionLoader<S>) EXTENSION_LOADERS.get(type);
    if (extensionLoader == null) {
        EXTENSION_LOADERS.putIfAbsent(type, new ExtensionLoader<S>(type));
        extensionLoader = (ExtensionLoader<S>) EXTENSION_LOADERS.get(type);
    }
    return extensionLoader;
}

如果EXTENSION_LOADERS里面没有当前类的加载器，就创建一个并缓存，下次直接返回。

接下来通过与接口绑定的ExtensionLoader的getExtension方法获得实现类。

private final Map<String, Holder<Object>> cachedInstances = new ConcurrentHashMap<>();

public T getExtension(String name) {
    if (StringUtil.isBlank(name)) {
        throw new IllegalArgumentException("Extension name should not be null or empty.");
    }
    // firstly get from cache, if not hit, create one
    Holder<Object> holder = cachedInstances.get(name);
    if (holder == null) {
        cachedInstances.putIfAbsent(name, new Holder<>());
        holder = cachedInstances.get(name);
    }
    // create a singleton if no instance exists
    Object instance = holder.get();
    if (instance == null) {
        synchronized (holder) {
            instance = holder.get();
            if (instance == null) {
                instance = createExtension(name);
                holder.set(instance);
            }
        }
    }
    return (T) instance;
}

Holder看作具体实现类的容器

public class Holder<T> {

    private volatile T value;

    public T get() {
        return value;
    }

    public void set(T value) {
        this.value = value;
    }
}

如果通过Holer获取到的实例为空，则通过双检加锁的方式获得实力，具体实际到createExtension方法

private T createExtension(String name) {
    // load all extension classes of type T from file and get specific one by name
    Class<?> clazz = getExtensionClasses().get(name);
    if (clazz == null) {
        throw new RuntimeException("No such extension of name " + name);
    }
    T instance = (T) EXTENSION_INSTANCES.get(clazz);
    if (instance == null) {
        try {
            EXTENSION_INSTANCES.putIfAbsent(clazz, clazz.newInstance());
            instance = (T) EXTENSION_INSTANCES.get(clazz);
        } catch (Exception e) {
            log.error(e.getMessage());
        }
    }
    return instance;
}



public Map<String, Class<?>> getExtensionClasses() {
    // get the loaded extension class from the cache
    Map<String, Class<?>> classes = cachedClasses.get();
    // double check
    if (classes == null) {
        synchronized (cachedClasses) {
            classes = cachedClasses.get();
            if (classes == null) {
                classes = new HashMap<>();
                // load all extensions from our extensions directory
                loadDirectory(classes);
                cachedClasses.set(classes);
            }
        }
    }
    return classes;
}

private void loadDirectory(Map<String, Class<?>> extensionClasses) {
    String fileName = ExtensionLoader.SERVICE_DIRECTORY + type.getName();
    try {
        Enumeration<URL> urls;
        ClassLoader classLoader = ExtensionLoader.class.getClassLoader();
        urls = classLoader.getResources(fileName);
        if (urls != null) {
            while (urls.hasMoreElements()) {
                URL resourceUrl = urls.nextElement();
                loadResource(extensionClasses, classLoader, resourceUrl);
            }
        }
    } catch (IOException e) {
        log.error(e.getMessage());
    }
}

首先通过getExtensionClasses().get(name);获得实现类的Class对象，如果是第一次，即存储这种映射关系的Map对象为空，则会调用loadDirectory方法，将文件中的键值关系存到map里面。

最终通过反射创建实现类对象，毕竟刚刚拿到了实现类的Class对象，并放入EXTENSION_INSTANCES中

private static final Map<Class<?>, Object> EXTENSION_INSTANCES = new ConcurrentHashMap<>();

该实例对象作为createExtension的返回值返回，调用holder.set(instance);

下次再来就是通过name拿到Holder对象，通过Holder对象拿到具体实现类对象。

总结

首先去name去cachedInstances里面找具体对象，没有找到，往里面放入一个空Holder对象

调用createExtension方法创建对象

通过name去cachedClasses里面找相应的Class对象，没找到，调用loadDirectory方法加载当前接口的所有实现类并存储映射关系

拿到Class对象后，去EXTENSION_INSTANCES里面找实例对象，没找到，通过反射创建对象存入其中并返回该对象

将返回的对象设置到Holder里面去，下次再来就是通过name拿到相应的Holder，调用其get方法获取实例对象。

3. Netty配置

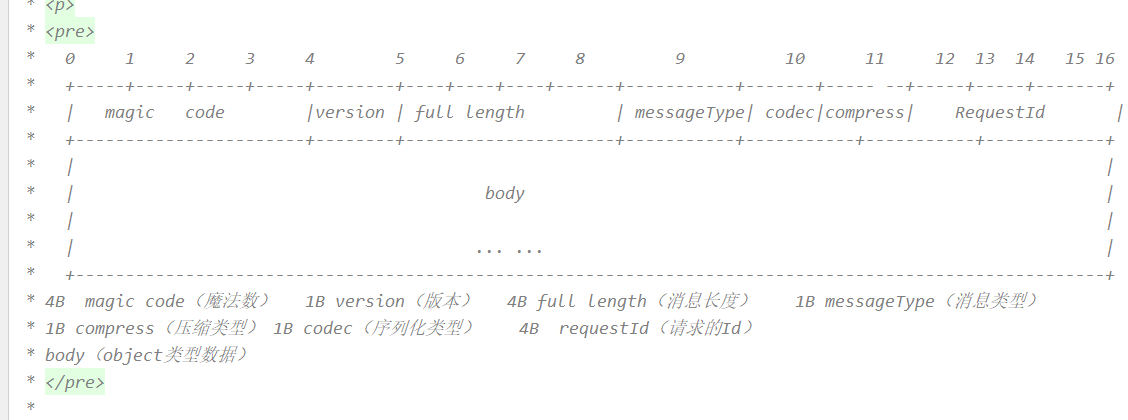

当双方发送消息时，会先经过RpcMessageEncoder，这里会按照协议填充数据包，并对数据进行序列化然后压缩最后发送。

收到消息后，经过RpcMessageDecoder进行解码

@Slf4j
public class RpcMessageDecoder extends LengthFieldBasedFrameDecoder {
    public RpcMessageDecoder() {
        // lengthFieldOffset: magic code is 4B, and version is 1B, and then full length. so value is 5
        // lengthFieldLength: full length is 4B. so value is 4
        // lengthAdjustment: full length include all data and read 9 bytes before, so the left length is (fullLength-9). so values is -9
        // initialBytesToStrip: we will check magic code and version manually, so do not strip any bytes. so values is 0
        this(RpcConstants.MAX_FRAME_LENGTH, 5, 4, -9, 0);
    }
    ......
}

这里分别指定了：

最大帧长度（8k）
长度偏移量
长度字段长度
数据长度修正（-9）：因为在此之前一共读了魔数（4B）、版本（1B）、长度字段（4B)
跳过的字节数(0)：因为需要检查魔数等字段，所以不跳过任何字节。

3.1 服务端

@Slf4j
@Component
public class NettyRpcServer {


    private final ServiceProvider serviceProvider = SingletonFactory.getInstance(ZkServiceProviderImpl.class);

    private static boolean isStart = false;

    public static boolean isNeedStart = false;

    public void registerService(RpcServiceConfig rpcServiceConfig) {
        serviceProvider.publishService(rpcServiceConfig);
    }



    @SneakyThrows
    public void start() {
        if (isStart || !isNeedStart) return;
        isStart = true;
        new Thread(() -> {
            CustomShutdownHook.getCustomShutdownHook().clearAll();
            String host = null;
            try {
                host = InetAddress.getLocalHost().getHostAddress();
            } catch (UnknownHostException e) {
                throw new RuntimeException(e);
            }
            EventLoopGroup bossGroup = new NioEventLoopGroup(1);
            EventLoopGroup workerGroup = new NioEventLoopGroup();
            DefaultEventExecutorGroup serviceHandlerGroup = new DefaultEventExecutorGroup(
                    RuntimeUtil.cpus() * 2,
                    ThreadPoolFactoryUtil.createThreadFactory("service-handler-group", false)
            );
            try {
                ServerBootstrap b = new ServerBootstrap();
                b.group(bossGroup, workerGroup)
                        .channel(NioServerSocketChannel.class)
                        // TCP默认开启了 Nagle 算法，该算法的作用是尽可能的发送大数据快，减少网络传输。TCP_NODELAY 参数的作用就是控制是否启用 Nagle 算法。
                        .childOption(ChannelOption.TCP_NODELAY, true)
                        // 是否开启 TCP 底层心跳机制
                        .childOption(ChannelOption.SO_KEEPALIVE, true)
                        //表示系统用于临时存放已完成三次握手的请求的队列的最大长度,如果连接建立频繁，服务器处理创建新连接较慢，可以适当调大这个参数
                        .option(ChannelOption.SO_BACKLOG, 128)
                        .handler(new LoggingHandler(LogLevel.INFO))
                        // 当客户端第一次进行请求的时候才会进行初始化
                        .childHandler(new ChannelInitializer<SocketChannel>() {
                            @Override
                            protected void initChannel(SocketChannel ch) {
                                // 30 秒之内没有收到客户端请求的话就关闭连接
                                ChannelPipeline p = ch.pipeline();
                                p.addLast(new IdleStateHandler(30, 0, 0, TimeUnit.SECONDS));
                                p.addLast(new RpcMessageEncoder());
                                p.addLast(new RpcMessageDecoder());
                                p.addLast(serviceHandlerGroup, new NettyRpcServerHandler());
                            }
                        });
                int port = SpringUtils.getBean(RpcProperties.class).getServerPort();
                // 绑定端口，同步等待绑定成功
                ChannelFuture f = b.bind(host, port).sync();
                // 等待服务端监听端口关闭
                f.channel().closeFuture().sync();
            } catch (InterruptedException e) {
                log.error("occur exception when start server:", e);
            } finally {
                log.error("shutdown bossGroup and workerGroup");
                bossGroup.shutdownGracefully();
                workerGroup.shutdownGracefully();
                serviceHandlerGroup.shutdownGracefully();
            }
        }).start();
    }
}

可以看到，bossGroup用来处理连接事件，线程数为1，workerGroup处理已建立连接的 Socket 的 I/O 读写操作，多线程提升并发处理能力。这里没有传参，默认为cpu核心数 * 2，serviceHandlerGroup用来处理业务操作，这里也是cpu核心数 * 2。

同时也禁用了Nagle算法，确保 RPC 请求的响应数据立即发送，减少网络传输延迟。

Nagle算法：

当应用层发送数据时，若存在未确认的已发送小包，则新数据会暂存缓冲区。
直到收到前一个包的 ACK 确认，或缓冲区数据积累到最大报文长度（MSS），才会一次性发送缓冲区的数据。

作用：

减少小数据包：强制发送端将多个小数据包合并成一个较大的数据包后再发送。

降低网络拥塞：避免网络中充斥大量小包（如仅含 1 字节数据的包），减少带宽浪费和网络拥堵

这里配置了心跳检测处理器：

p.addLast(new IdleStateHandler(30, 0, 0, TimeUnit.SECONDS));

关于前面3个参数：

IdleStateHandler(int readerIdleTime, int writerIdleTime, int allIdleTime, TimeUnit unit)

readerIdleTime：读空闲超时，多久未收到客户端数据时触发空闲事件
writerIdleTime：写空闲超时，多久未向客户端发送数据时触发空闲事件
allIdleTime：全局空闲超时，多久既未读也未写数据时触发空闲事件

这里是30s未收到就断开连接：

@Slf4j
public class NettyRpcServerHandler extends ChannelInboundHandlerAdapter {
    ......
    @Override
    public void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception {
        if (evt instanceof IdleStateEvent) {
            IdleState state = ((IdleStateEvent) evt).state();
            //如果在设定的时间内没有接收到任何数据，IdleStateHandler 会触发 READER_IDLE 事件。
            if (state == IdleState.READER_IDLE) {
                log.info("idle check happen, so close the connection");
                ctx.close();
            }
        } else {
            super.userEventTriggered(ctx, evt);
        }
    }
    ......
}

请求到达服务端，首先经过RpcMessageDecoder处理，根据messageType构造相应的RpcMessage对象。

if (messageType == RpcConstants.HEARTBEAT_REQUEST_TYPE) {
    rpcMessage.setData(RpcConstants.PING);
    return rpcMessage;
}
if (messageType == RpcConstants.HEARTBEAT_RESPONSE_TYPE) {
    rpcMessage.setData(RpcConstants.PONG);
    return rpcMessage;
}
//先解压再反序列化
if (messageType == RpcConstants.REQUEST_TYPE) {
    RpcRequest tmpValue = serializer.deserialize(bs, RpcRequest.class);
    rpcMessage.setData(tmpValue);
} else {
    RpcResponse tmpValue = serializer.deserialize(bs, RpcResponse.class);
    rpcMessage.setData(tmpValue);
}

之后数据传递给NettyRpcServerHandler，通过动态代理执行本地方法。

public Object handle(RpcRequest rpcRequest) {
    Object service = serviceProvider.getService(rpcRequest.getRpcServiceName());
    return invokeTargetMethod(rpcRequest, service);
}

/**
 * get method execution results
 *
 * @param rpcRequest client request
 * @param service    service object
 * @return the result of the target method execution
 */
private Object invokeTargetMethod(RpcRequest rpcRequest, Object service) {
    Object result;
    try {
        Method method = service.getClass().getMethod(rpcRequest.getMethodName(), rpcRequest.getParamTypes());
        result = method.invoke(service, rpcRequest.getParameters());
        log.info("service:[{}] successful invoke method:[{}]", rpcRequest.getInterfaceName(), rpcRequest.getMethodName());
    } catch (NoSuchMethodException | IllegalArgumentException | InvocationTargetException | IllegalAccessException e) {
        throw new RpcException(e.getMessage(), e.getCause());
    }
    return result;
}

最后将结果写回客户端。

3.2 客户端

public NettyRpcClient(RpcProperties rpcProperties) {
    this.unprocessedRequests = SingletonFactory.getInstance(UnprocessedRequests.class);
    this.channelProvider = SingletonFactory.getInstance(ChannelProvider.class);
    this.rpcProperties = rpcProperties;
    this.serviceDiscovery = ExtensionLoader.getExtensionLoader(ServiceDiscovery.class).getExtension(rpcProperties.getRegistry());
    NettyRpcClient client = this;
    // initialize resources such as EventLoopGroup, Bootstrap
    eventLoopGroup = new NioEventLoopGroup();
    bootstrap = new Bootstrap();
    bootstrap.group(eventLoopGroup)
            .channel(NioSocketChannel.class)
            .handler(new LoggingHandler(LogLevel.INFO))
            //  The timeout period of the connection.
            //  If this time is exceeded or the connection cannot be established, the connection fails.
            .option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 5000)
            .handler(new ChannelInitializer<SocketChannel>() {
                @Override
                protected void initChannel(SocketChannel ch) {
                    ChannelPipeline p = ch.pipeline();
                    // If no data is sent to the server within 15 seconds, a heartbeat request is sent
                    p.addLast(new IdleStateHandler(0, 5, 0, TimeUnit.SECONDS));
                    p.addLast(new RpcMessageEncoder());
                    p.addLast(new RpcMessageDecoder());
                    p.addLast(new NettyRpcClientHandler(client));
                }
            });
}

这里如果5s内客户端没有向服务端写数据就会触发写空闲事件

@Override
public void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception {
    if (evt instanceof IdleStateEvent) {
        IdleState state = ((IdleStateEvent) evt).state();
        //如果在设定的时间内没有向通道写入任何数据，IdleStateHandler 会触发 WRITER_IDLE 事件。
        if (state == IdleState.WRITER_IDLE) {
            log.info("write idle happen [{}]", ctx.channel().remoteAddress());
            Channel channel = nettyRpcClient.getChannel((InetSocketAddress) ctx.channel().remoteAddress());
            RpcMessage rpcMessage = new RpcMessage();
            rpcMessage.setCodec(SerializationTypeEnum.PROTOSTUFF.getCode());
            rpcMessage.setCompress(CompressTypeEnum.getCode(rpcProperties.getCompress()));
            rpcMessage.setMessageType(RpcConstants.HEARTBEAT_REQUEST_TYPE);
            rpcMessage.setData(RpcConstants.PING);
            channel.writeAndFlush(rpcMessage).addListener(ChannelFutureListener.CLOSE_ON_FAILURE);
        }
    } else {
        super.userEventTriggered(ctx, evt);
    }
}

3.3 方法调用流程

public interface HelloService {
    String hello(Hello hello);
}

这个实现类就是服务提供者

@Slf4j
@RpcService(group = "test1", version = "version1")
public class HelloServiceImpl1 implements HelloService {
    @Override
    public String hello(Hello hello) {
        log.info("这是hello1");
        int a = 1 / 0;
        return hello.toString();
    }
}

这里是消费者

@RestController
public class TestController {
    @RpcReference(version = "version1", group = "test1", loadBalance = LoadBalanceStrategy.RANDOM)
    private HelloService helloService;
    @GetMapping
    public String test(){
        String hello = helloService.hello(new Hello("111", "222"));
        return hello;
    }
}

@RpcReference可以指定一些基础配置

@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.FIELD})
@Inherited
public @interface RpcReference {

    /**
     * Service version, default value is empty string
     */
    String version() default "";

    /**
     * Service group, default value is empty string
     */
    String group() default "";

    /**
     * 重试次数
     */
    int retries() default 3;

    /**
     * 负载均衡
     */
    String loadBalance() default  "";

    /**
     * 集群容错
     */
    String cluster() default  "";

    /**
     * 是否异步执行
     */
    boolean async() default false;

}

当消费者发起方法调用时，会被动态代理拦截，执行RpcClientProxy的invoke方法。

@SneakyThrows
@SuppressWarnings("unchecked")
@Override
public Object invoke(Object proxy, Method method, Object[] args) {
    log.info("invoked method: [{}]", method.getName());
    RpcRequest rpcRequest = RpcRequest.builder()
            .methodName(method.getName())
            .parameters(args)
            .interfaceName(method.getDeclaringClass().getName())
            .paramTypes(method.getParameterTypes())
            .requestId(UUID.randomUUID().toString())
            .group(rpcServiceConfig.getGroup())
            .version(rpcServiceConfig.getVersion())
            .consumerName(o.getClass().getName())
            .build();
    RpcReferenceConfig rpcReferenceConfig = RpcReferenceConfig.getRpcReferenceConfig(rpcRequest.getConsumerName(), rpcRequest.getInterfaceName());
    //发送请求
    Object responseFuture = rpcRequestTransport.sendRpcRequest(rpcRequest);

    if (rpcReferenceConfig.isAsync()) {
        CompletableFuture<RpcResponse<?>> future = (CompletableFuture<RpcResponse<?>>) responseFuture;
        FutureContext.setFuture(future);
    } else {
        RpcResponse rpcResponse = ((CompletableFuture<RpcResponse<Object>>)responseFuture).get();
        check(rpcResponse, rpcRequest);
        return rpcResponse.getData();
    }
    return null;
}

主要看sendRpcRequest方法，里面会根据用户的配置选择相应的集群容错方式进行服务调用，为了测试方便我这里是直接new了一个FixedIntervalRetryCluster，即重试固定次数。

@Override
public Object sendRpcRequest(RpcRequest rpcRequest) {
    return new FixedIntervalRetryCluster(this).invoke(rpcRequest,new ClusterConfig());
}

FixedIntervalRetryCluster：

@Slf4j
public class FixedIntervalRetryCluster extends AbstractClusterFaultTolerant {
    private static final ScheduledExecutorService scheduler =
            Executors.newScheduledThreadPool(Runtime.getRuntime().availableProcessors());

    public FixedIntervalRetryCluster(NettyRpcClient rpcClient) {
        super(rpcClient);
    }

    @Override
    public Object invoke(RpcRequest rpcRequest, ClusterConfig clusterConfig) {
        CompletableFuture<RpcResponse<Object>> resultFuture = new CompletableFuture<>();
        AtomicInteger remainingRetries = new AtomicInteger(clusterConfig.getRetryTimes());
        Consumer<RpcRequest> attempt = new Consumer<RpcRequest>() {
            @Override
            public void accept(RpcRequest request) {
                sendSingleRequest(request).whenComplete((response, ex) -> {
                    if (response != null) {
                        // 成功时完成 Future
                        resultFuture.complete(response);
                    } else if (ex != null && isRetryable(ex) && remainingRetries.get() > 0) {
                        // 执行重试逻辑
                        int retryCount = clusterConfig.getRetryTimes() - remainingRetries.decrementAndGet();
                        log.info("第 {} 次重试请求: {}", retryCount, request);

                        // 6. 使用调度器实现非阻塞延迟
                        scheduler.schedule(() -> {
                            // 7. 创建新请求对象避免状态污染
                            RpcRequest newRequest = reBuildRequest(request);
                            accept(newRequest); // 迭代调用
                        }, clusterConfig.getRetryIntervals(), TimeUnit.MILLISECONDS);
                    } else {
                        // 8. 最终异常处理
                        resultFuture.completeExceptionally(
                                ex != null ? ex : new RpcException(RpcErrorMessageEnum.SERVICE_INVOCATION_FAILURE)
                        );
                    }
                });
            }
        };
        attempt.accept(rpcRequest);
        return resultFuture;
    }
}

这里对单独消息发送的逻辑抽取成了一个方法sendSingleRequest

public CompletableFuture<RpcResponse<Object>> sendSingleRequest(RpcRequest rpcRequest) {
    CompletableFuture<RpcResponse<Object>> future = new CompletableFuture<>();
    InetSocketAddress address = rpcClient.getServiceDiscovery().lookupService(rpcRequest);
    Channel channel = null;
    try {
        channel = rpcClient.getChannel(address);
    } catch (Exception e) {
        future.completeExceptionally(e);
        return future;
    }
    if (channel.isActive()) {
        rpcClient.getUnprocessedRequests().put(rpcRequest.getRequestId(), future);
        RpcProperties rpcProperties = rpcClient.getRpcProperties();
        RpcMessage rpcMessage = RpcMessage.builder()
                .data(rpcRequest)
                .codec(SerializationTypeEnum.getCode(rpcProperties.getSerializer()))
                .compress(CompressTypeEnum.getCode(rpcProperties.getCompress()))
                .messageType(RpcConstants.REQUEST_TYPE).build();
        channel.writeAndFlush(rpcMessage).addListener((ChannelFutureListener) sendFuture -> {
            if (!sendFuture.isSuccess()) {
                future.completeExceptionally(sendFuture.cause());
                log.error("Send request failed", sendFuture.cause());
            }
        });
    } else {
        future.completeExceptionally(new RpcException(RpcErrorMessageEnum.CLIENT_CONNECT_SERVER_FAILURE));
    }
    return future;
}

首先通过负载均衡选出一个提供者地址，通过getChannel查看当前客户端与服务端是否有已经建立并且还活跃的连接(Channel)，没有则进行连接建立。如果没有异常，则建立requestId与CompletableFuture之间的映射关系并构造RpcMessage对象，最后直接返回future。

最终请求到达服务端并执行目标方法，返回结果，到达NettyRpcClientHandler,取出执行结果，根据里面的requestId找到对应的future对象，调用其complete方法，此时触发集群容错里面重写的invoke方法的回调函数。

sendSingleRequest(request).whenComplete((response, ex) -> {
    if (response != null) {
        // 成功时完成 Future
        resultFuture.complete(response);
    } else if (ex != null && isRetryable(ex) && remainingRetries.get() > 0) {
        // 执行重试逻辑
        int retryCount = clusterConfig.getRetryTimes() - remainingRetries.decrementAndGet();
        log.info("第 {} 次重试请求: {}", retryCount, request);

        // 6. 使用调度器实现非阻塞延迟
        scheduler.schedule(() -> {
            // 7. 创建新请求对象避免状态污染
            RpcRequest newRequest = reBuildRequest(request);
            accept(newRequest); // 迭代调用
        }, clusterConfig.getRetryIntervals(), TimeUnit.MILLISECONDS);
    } else {
        // 8. 最终异常处理
        resultFuture.completeExceptionally(
                ex != null ? ex : new RpcException(RpcErrorMessageEnum.SERVICE_INVOCATION_FAILURE)
        );
    }
});

当重试次数耗尽就调用completeExceptionally方法。一开始的动态代理的invoke方法就通过这里返回的future对象获取原始数据。

这里的返回的future对象作为sendRpcRequest的返回值

Object responseFuture = rpcRequestTransport.sendRpcRequest(rpcRequest);

if (rpcReferenceConfig.isAsync()) {
    CompletableFuture<RpcResponse<?>> future = (CompletableFuture<RpcResponse<?>>) responseFuture;
    FutureContext.setFuture(future);
} else {
    RpcResponse rpcResponse = ((CompletableFuture<RpcResponse<Object>>)responseFuture).get();
    check(rpcResponse, rpcRequest);
    return rpcResponse.getData();
}

如果不是异步调用，就在这里通过get方法阻塞获取最终值。

4. 服务注册流程

服务通过@RpcScan指定扫描路径，通过自定义扫描器扫描指定路径，将被@RpcService修饰的类注册为Spring Bean.

@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.TYPE})
@Inherited
public @interface RpcService {

    /**
     * Service version, default value is empty string
     */
    String version() default "";

    /**
     * Service group, default value is empty string
     */
    String group() default "";

}

这里自定义了Spring的后置处理器SpringBeanPostProcessor并重写了postProcessBeforeInitialization和postProcessAfterInitialization方法，前者用来处理@RpcService注解

@SneakyThrows
@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
    if (bean.getClass().isAnnotationPresent(RpcService.class)) {
        log.info("[{}] is annotated with  [{}]", bean.getClass().getName(), RpcService.class.getCanonicalName());
        // get RpcService annotation
        RpcService rpcService = bean.getClass().getAnnotation(RpcService.class);
        // build RpcServiceProperties
        RpcServiceConfig rpcServiceConfig = RpcServiceConfig.builder()
                .group(rpcService.group())
                .version(rpcService.version())
                .service(bean)
                .build();
        serviceProvider.publishService(rpcServiceConfig);
    }
    return bean;
}

这里会根据注解属性构造RpcServiceConfig对象，这里的bean变量就是某个接口的具体实现类，通过publishService进行服务发布，这里默认使用Zookeeper作为注册中心。

@Override
public void publishService(RpcServiceConfig rpcServiceConfig) {
    int port = SpringUtils.getBean(RpcProperties.class).getServerPort();
    try {
        String host = InetAddress.getLocalHost().getHostAddress();
        this.addService(rpcServiceConfig);
        //发布到注册中心  key为rpcServiceName，value为ip
        serviceRegistry.registerService(rpcServiceConfig.getRpcServiceName(), new InetSocketAddress(host, port));
    } catch (UnknownHostException e) {
        log.error("occur exception when getHostAddress", e);
    }
}

/**
 * Set中加入rpcServiceName（github.javaguide.HelloServicetest1version1）
 * map中加入rpcServiceName和service对象（HelloServiceImpl）
 * @param rpcServiceConfig rpc service related attributes
 */
@Override
public void addService(RpcServiceConfig rpcServiceConfig) {
    String rpcServiceName = rpcServiceConfig.getRpcServiceName();
    if (registeredService.contains(rpcServiceName)) {
        return;
    }
    registeredService.add(rpcServiceName);
    serviceMap.put(rpcServiceName, rpcServiceConfig.getService());
    log.info("Add service: {} and interfaces:{}", rpcServiceName, rpcServiceConfig.getService().getClass().getInterfaces());
}

这里的addService方法主要是添加服务名、以及服务名和实现类的映射关系。

服务名为接口名加上版本号和分组信息（github.javaguide.HelloServicetest1version1）

这里的registerService就是将提供者信息注册到注册中心上去。

public class ZkServiceRegistryImpl implements ServiceRegistry {

    @Override
    public void registerService(String rpcServiceName, InetSocketAddress inetSocketAddress) {

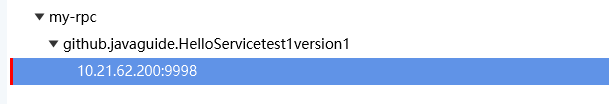

        String servicePath = CuratorUtils.ZK_REGISTER_ROOT_PATH + "/" + rpcServiceName + inetSocketAddress.toString();
        CuratorFramework zkClient = CuratorUtils.getZkClient();
        CuratorUtils.createPersistentNode(zkClient, servicePath);
    }
}

同时会在本地保存这个一份儿这个path。

5. 消费者注册流程

这里主要看SpringBeanPostProcessor的postProcessAfterInitialization方法

@Override
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
    Class<?> targetClass = bean.getClass();
    Field[] declaredFields = targetClass.getDeclaredFields();
    for (Field declaredField : declaredFields) {
        RpcReference rpcReference = declaredField.getAnnotation(RpcReference.class);
        if (rpcReference != null) {
            RpcServiceConfig rpcServiceConfig = RpcServiceConfig.builder()
                    .group(rpcReference.group())
                    .version(rpcReference.version())
                    .build();
            RpcReferenceConfig.addRpcReferenceConfig(bean.getClass().getName(),declaredField.getType().getName(), rpcReference);
            RpcClientProxy rpcClientProxy = new RpcClientProxy(rpcClient, rpcServiceConfig,bean);
            Object clientProxy = rpcClientProxy.getProxy(declaredField.getType());
            declaredField.setAccessible(true);
            try {
                declaredField.set(bean, clientProxy);
            } catch (IllegalAccessException e) {
                e.printStackTrace();
            }
        }

    }
    return bean;
}

会检查每个Bean里面是否有被@RpcReference修饰的字段，如果有的话就创建一个代理对象来替代这个字段，这就是为什么进行方法调用会被拦截。这里同时也会建立consumerName + "." + interfaceName与RpcReferenceConfig之间的映射关系。

public class RpcReferenceConfig {

    public static Map<String,RpcReferenceConfig> rpcReferenceConfigMap = new ConcurrentHashMap<>();

    /**
     * Service version, default value is empty string
     */
    private String version;

    /**
     * Service group, default value is empty string
     */
    private String group;

    private int retries;

    private String loadBalance;

    private String cluster;

    private boolean async;

    public static void addRpcReferenceConfig(String consumerName, String fieldName, RpcReference rpcReference) {
        rpcReferenceConfigMap.put(consumerName + "." + fieldName,RpcReferenceConfig.builder()
                .group(rpcReference.group())
                .version(rpcReference.version())
                .retries(rpcReference.retries())
                .loadBalance(rpcReference.loadBalance())
                .cluster(rpcReference.cluster())
                .async(rpcReference.async())
                .build());
    }

    public static RpcReferenceConfig getRpcReferenceConfig(String consumerName, String interfaceName) {
        return rpcReferenceConfigMap.get(consumerName + "." + interfaceName);
    }
}

@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.FIELD})
@Inherited
public @interface RpcReference {

    /**
     * Service version, default value is empty string
     */
    String version() default "";

    /**
     * Service group, default value is empty string
     */
    String group() default "";

    /**
     * 重试次数
     */
    int retries() default 3;

    /**
     * 负载均衡
     */
    String loadBalance() default  "";

    /**
     * 集群容错
     */
    String cluster() default  "";

    /**
     * 是否异步执行
     */
    boolean async() default false;

}

6. 负载均衡策略

在发送请求之前，要先得到服务提供者的ip地址

InetSocketAddress address = rpcClient.getServiceDiscovery().lookupService(rpcRequest);

目前只实现了Zookeeper作为注册中心

@Slf4j
public class ZkServiceDiscoveryImpl implements ServiceDiscovery {


    @Override
    public InetSocketAddress lookupService(RpcRequest rpcRequest) {
        String rpcServiceName = rpcRequest.getRpcServiceName();
        CuratorFramework zkClient = CuratorUtils.getZkClient();
        List<String> serviceUrlList = CuratorUtils.getChildrenNodes(zkClient, rpcServiceName);
        if (CollectionUtil.isEmpty(serviceUrlList)) {
            throw new RpcException(RpcErrorMessageEnum.SERVICE_CAN_NOT_BE_FOUND, rpcServiceName);
        }
        // load balancing
        RpcReferenceConfig rpcReferenceConfig = RpcReferenceConfig.getRpcReferenceConfig(rpcRequest.getConsumerName(), rpcRequest.getInterfaceName());
        LoadBalance loadBalance = ExtensionLoader
                .getExtensionLoader(LoadBalance.class)
                .getExtension(StringUtil.isBlank(rpcReferenceConfig.getLoadBalance()) ? LoadBalanceEnum.LOADBALANCE.getName() : rpcReferenceConfig.getLoadBalance());
        String targetServiceUrl = loadBalance.selectServiceAddress(serviceUrlList, rpcRequest);
        log.info("Successfully found the service address:[{}]", targetServiceUrl);
        String[] socketAddressArray = targetServiceUrl.split(":");
        String host = socketAddressArray[0];
        int port = Integer.parseInt(socketAddressArray[1]);
        return new InetSocketAddress(host, port);
    }
}

这里会先通过rpcServiceName获取可用服务提供者ip地址，再通过配置的负载均衡算法选择出ip地址。

7. 异步调用

jdk动态代理里面的invoke方法里面调用sendRpcRequest发送请求，返回一个future对象，如果不是异步调用，则会通过其get方法阻塞获取返回值，否则将这个future对象绑定到当前线程的ThreadLocal上。

public class FutureContext {
    private static final ThreadLocal<CompletableFuture<RpcResponse<?>>> FUTURE_THREAD_LOCAL = new ThreadLocal<>();

    public static <T> CompletableFuture<T> getFuture(Class<T> targetType) {
        CompletableFuture<RpcResponse<?>> responseFuture = FUTURE_THREAD_LOCAL.get();
        if (responseFuture == null) {
            throw new IllegalStateException("No future in context for current thread");
        }
        clearFuture();
        CompletableFuture<T> resultFuture = new CompletableFuture<>();
        responseFuture.whenComplete((rpcResponse, throwable) -> {
            if (throwable != null) {
                resultFuture.completeExceptionally(throwable);
            } else {
                Object data = rpcResponse.getData();
                if (targetType.isInstance(data)) {
                    resultFuture.complete(targetType.cast(data));
                } else {
                    resultFuture.completeExceptionally(new ClassCastException("Cannot cast response data to " + targetType.getName()));
                }
            }
        });
        return resultFuture;
    }

    public static void setFuture(CompletableFuture<RpcResponse<?>> future) {
        FUTURE_THREAD_LOCAL.set(future);
    }

    public static void clearFuture() {
        FUTURE_THREAD_LOCAL.remove();
    }
}

后续用户可以通过FutureContext#getFuture方法获取返回的future对象。
